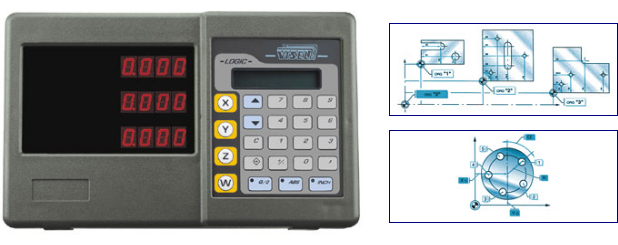

Digital readout system mod. LOGIC |
Digital readout matematical multifunctions |
|
The D.R.O. (Digital Read Out) systems have been projected and developed with extreme rationality: in fac they have all the functions for the applications
with every kind of tool machine.
With a very cheap costs easy to use and high releability, they offer a valid option to reduce the production costs with standard tool machine, to correct
wear errors and measurement accuracy.
|
GENERAL
- LCD display for programming and reading
- Language selection
- Fourth axes which can be added to ones of the other three axes (x-y-z)
- Drilling cycles on circumference (round flange)
- Drilling cycles on reticles, oblique lines
- 10 presettable and autolearn Origins
- Autolearns cycles
- Circumference centre calculation
- Programs memory
- Tool offset
- SET UP from keyboard: linear correction, count factor, resolution, algebraic sign, counting inversion
- TEST from keyboard: linear scale/ encoder/ display/ in-out system
- Reset - preset display
- Millimeter/inch display conversion
- Zero reference search (encoder, linear scale)
- Absolute/Incremental count selection
- Midpoint calculation
- Static memory for 1000 hours
- Constant pitch
|
FEATURES
- Feed voltage: 90-270 Vca 50 Hz
- Power: 40W
- Working temperature: 0°C - 50°C
- Storage temperature: -15°C - 75°C
- Net Weight: 1,1 Kg
- Signals input: 2 dephased square waves 90° (12V standard) + zero signal
- Frequency calculation: 150 KHz/channel
- Number of channels: max 4 (X-Y-Z-W)
|

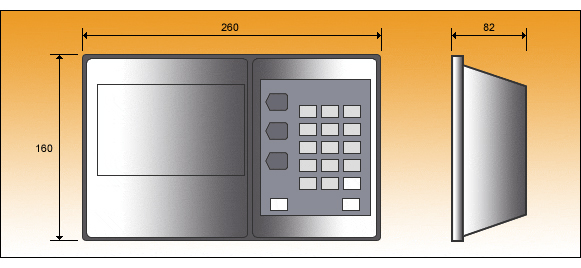

DIMENSION
|
|
HARDWARE
- Single circuit board with microprocessor 32 bit
- SMD miniaturized technology
- Levels visualisation on display 17 mm high efficiency
- Messages visualisation on LCD 16x2 retro-lighted by LED (vers. LOGIC)
- Polycarbonate tin keyboard to the external agents
- Polycarbonate tin cover (graphite supply)
|
OPTIONALS
- Relay output "Z STOP" for electroerosion
- RS232 Output
|
